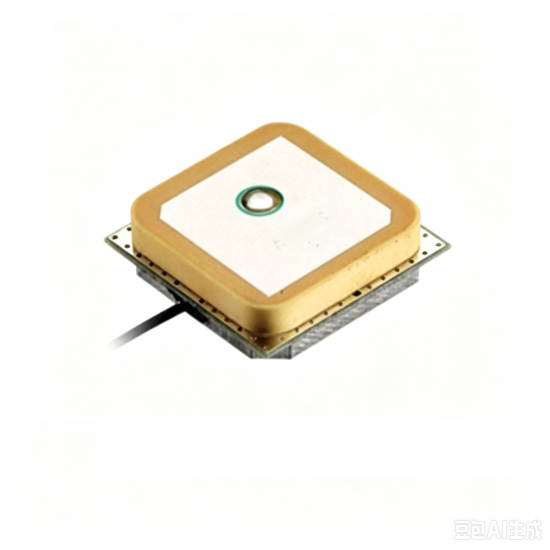

GPS Patch Antenna Internal Active Antenna 25254

GPS Patch Antennas is used in the wide wave band. With wide frequency, high gain , it can be widely for Satellite communication

Item NO.:
MNA-1575IPEX25254
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
10

Inquiry now

Products Details

Product Name

GPS Patch Antenna Internal Active Antenna

Product Features

◆ Wide Frequency Band 1575.42±3MHz

◆ Low VSWR

◆ For use in navigation systems and satellite communication systems.

Technical &Mechanical Specifications

Antenna	Center Frequency	1575.42±3MHz
	Band Width	CF±5MHz
	Polarization	RHCP
	Gain	5dBic（Zenith）
	V.S.W.R	<1.5
	Impendance	50Ω
	Axial Ratio	3dB（Zenith）
	Dimension	25254mm
LNA	Gain	28±2dB
	Noise Figure	＜1.5dB
	Filter Insertion Loss	＜3dB
	Ex-band Attenuation	12dB@CF+50MHz/16dB@CF-50MHz
	Supply Voltage	2.2~5V DC
	Current Consumption	＜15mA
	V.S.W.R	＜2.0
Mechanical	Cable	RF1.13 or others
Mechanical	Connector	IPEX or others
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 75%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
