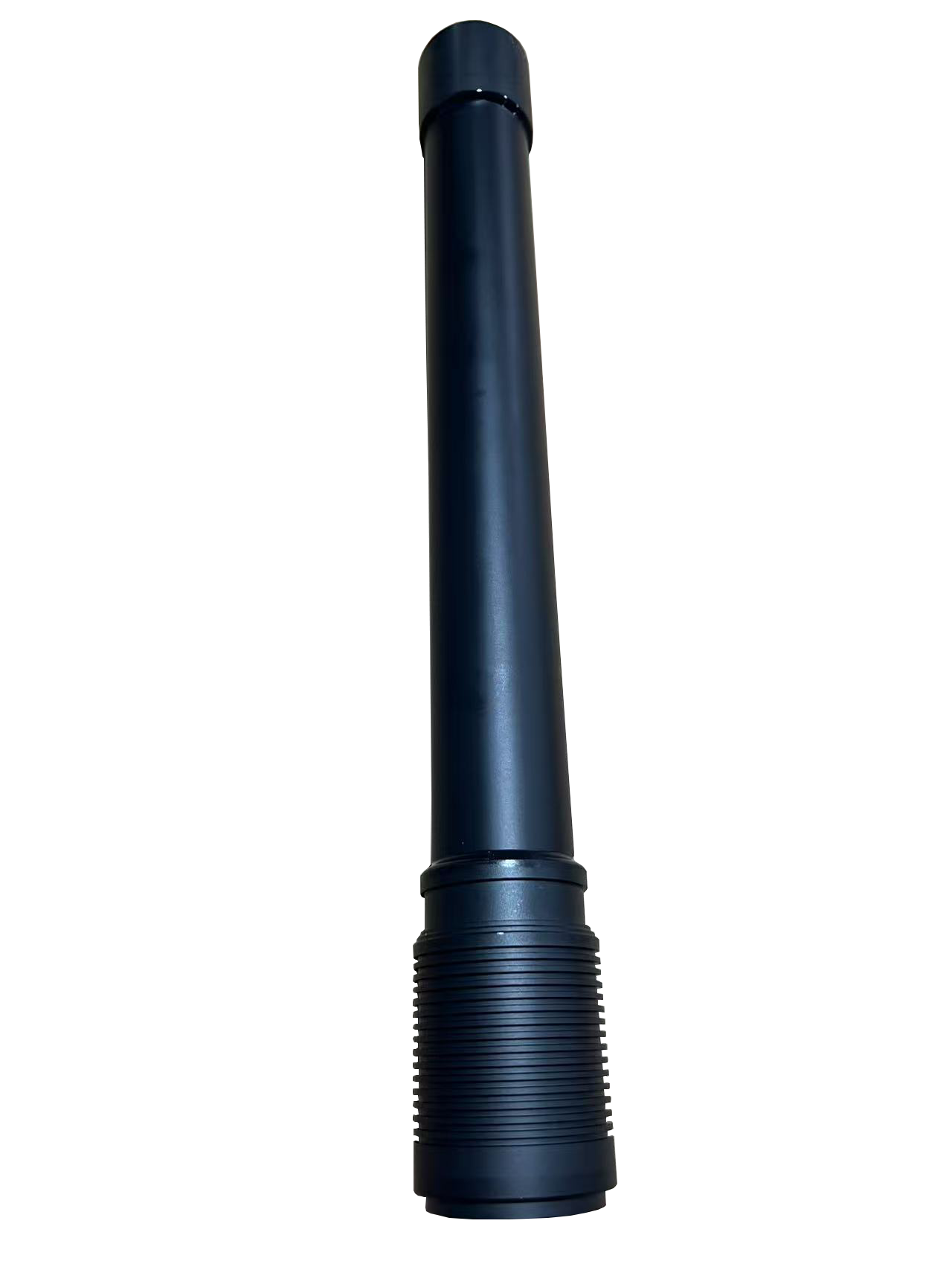

0-512MHz Omnidirectional Fiberglass Antenna 0-5dBi N-J Male 100W Outdoor Waterproof Vertical Polarization Base Station Antenna

0-512MHz omnidirectional fiberglass antenna, N-J male, 0-5dBi, 100W, outdoor waterproof vertical polarization base station antenna, wide band fiberglass whip antenna

Item NO.:
MNA-512-FIB
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Black

Inquiry now

Products Details

Product Name

0-512MHz Omnidirectional Fiberglass Antenna 0-5dBi N-J Male 100W Outdoor Waterproof Vertical Polarization Base Station Antenna

Product Features

◆Wide Band Omnidirectional Coverage

◆Waterproof Fiberglass Housing for Outdoor Use

◆ High Power Handling

Technical &Mechanical Specifications

FrequencyRange	0-512MHz
Gain(dBi)	0-5dBi
VSWR	≤2.5
Polarization	V
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	360º 55±10°
ovality(dB)	≤±2dB
Input Impedance（Ω）	50Ω
Maximum input power(W)	100W
Inpur connector type	N-J
Lightning Protection	DC Ground
