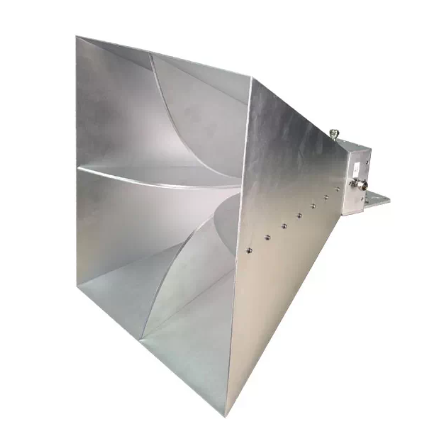

Quad-Ridged Horn Antenna 2-18GHz 8.5-17.5dBi Dual Polarization 2*NK Connector RF EMC EMI Test Antenna

uad-Ridged Horn Antenna 2-18GHz 8.5-17.5dBi Dual Polarization 2*NK Connector RF EMC EMI Test Antenna

Item NO.:
MNA-2-18-Hor
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Silver

Inquiry now

Products Details

Product Name

**uad-Ridged Horn Antenna 2-18GHz 8.5-17.5dBi Dual Polarization 2*NK Connector RF EMC EMI Test Antenna**

Product Features

◆Ultra-wide Frequency Band

◆Dual Polarized Quad-Ridged Horn Design

◆ Dual NK Connectors

Technical &Mechanical Specifications

Type

Horn Antenna

Model Number

LX-Double Ridged Horn Antenna

Brand Name

maniron

Place of Origin

Anhui, China

Frequency Range

2-18G

Band (MHz)

16000MHz

Gain (dBi)

17.5dBi

VSWR

≤3.2

Impedance (Ω)

50Ω

Max Power (w)

100W
