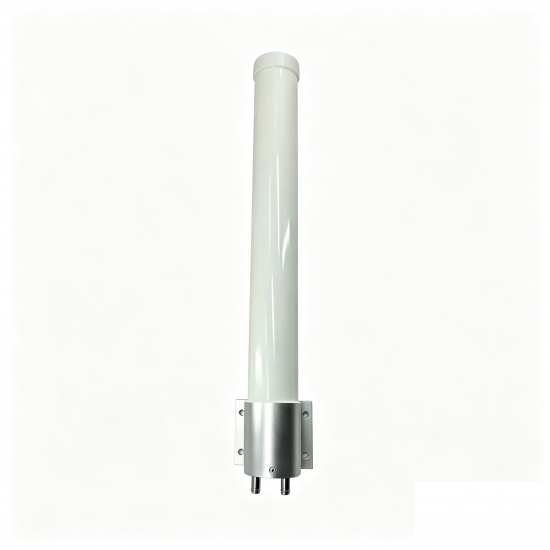

2400-2500/5150-5850MHz Fiberglass 4x4 MIMO 5G Omnidirectional Antenna

Omnidirectional Fiberglass Antennas is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely for Home use.

Item NO.:
MNA-2458V810NF04
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
5

Inquiry now

Products Details

Product Name

Maniron 2400-2500/5100-5850MHz Fiberglass 4*4 MIMO 5G Ominidirectional Antenna

Product Features

◆ Wide Frequency Band 2.4&5.8 GHz

◆ Low VSWR

◆ High Gain

Technical &Mechanical Specifications

Frequency Range (MHz)	2400～2500	5150～5850
Bandwidth (MHz)	100	700
Polarization	Vertical
Gain (dBi)	8	10
Vertical Beamwidth (°)	22	11
Input Impedance (Ω)	50
Voltage Standing Wave Ratio (VSWR)	≤2
Maximum Power (W)	50
Connector Type	4×N Female
	4×2.4&5GHz Dual-band Ports
Antenna Dimensions (mm)	Φ75×465
Antenna Weight (kg)	1.5
Cover Material	PVC (White)
Ultimate Wind Speed (m/s)	60
Mast Diameter (mm)	50~90

Application
